2.1 Meshnology N30
In this page, you will find detailed information about our product - N30.
The N30 is the first maker-focused product developed by our Meshnology team, specifically designed for the Heltec LoRa V3 Node. It features a newly engineered, compact 3D-printed protective case along with a built-in 1100mAh battery. Despite its small footprint, the N30 seamlessly integrates both the Heltec LoRa V3 Node and the battery, achieving optimal balance between size and weight. It delivers a complete, ready-to-deploy solution for LoRa applications in outdoor environments.
Spesicifacitons
From a structural perspective, the Meshnology N30 Kit mainly includes:
- Heltec WiFi & LoRa V3 Node with OLED Display * 1
- 3D-Printed Protective Case * 1
- 1100mAh Battery * 1
- Antenna * 2
Below is the information for each component.
Heltec WiFi & LoRa V3 Node
Since the Heltec WiFi & LoRa V3 Node is a standalone product from Heltec, we have placed it in a dedicated section.
Jump to Resources For Heltec WiFi & LoRa V3 Node

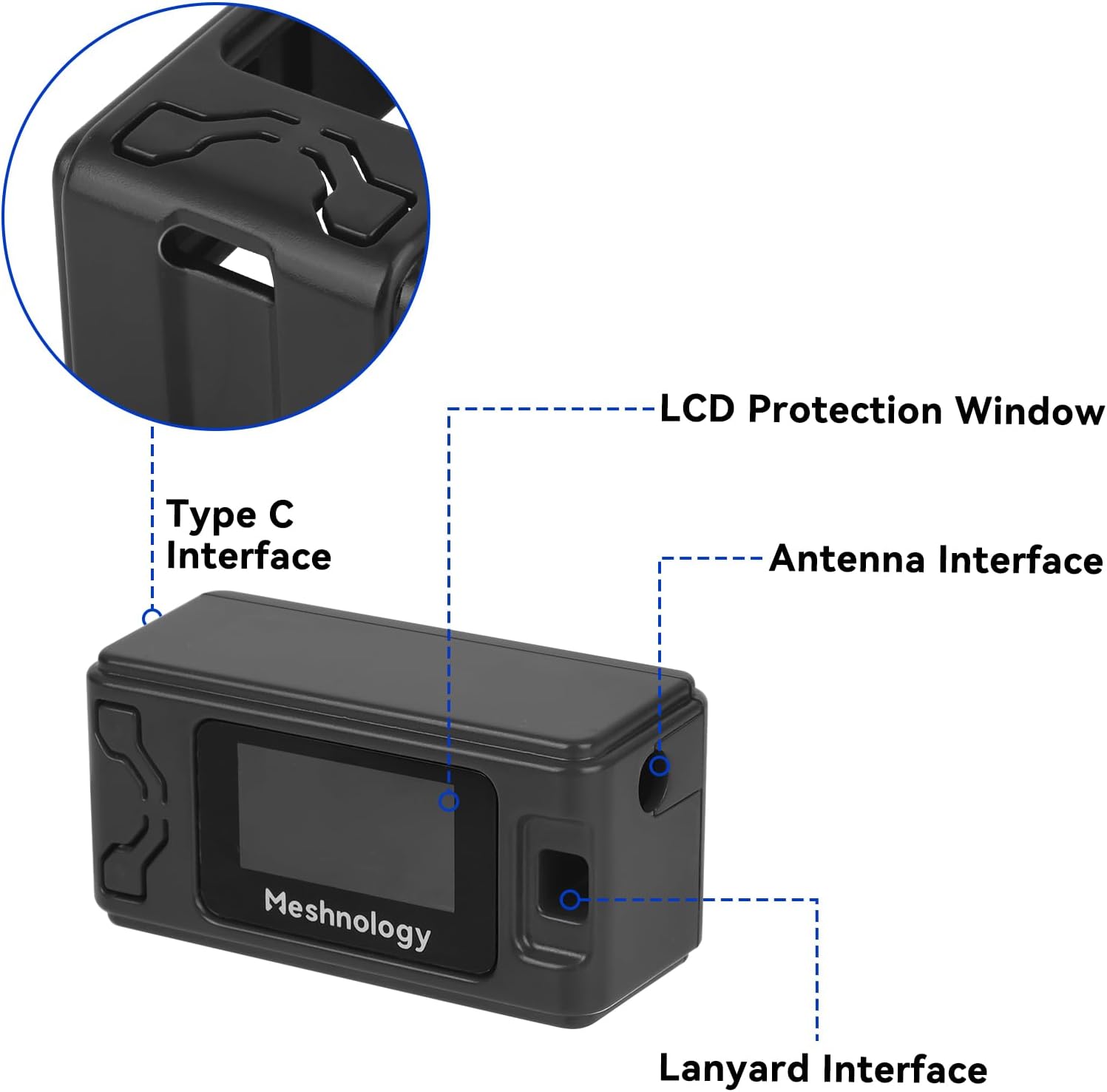

3D-Printed Protective case
Order: Pruchase Link

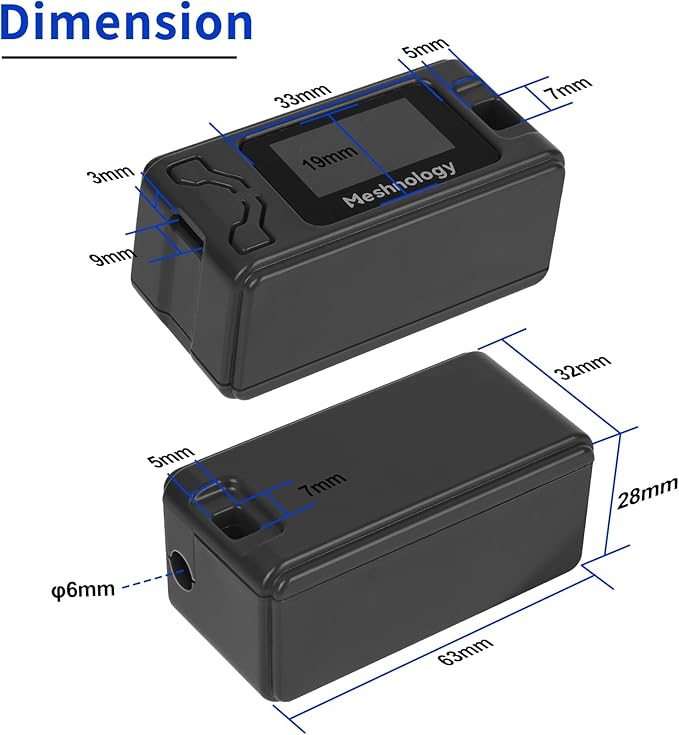

Dimensions
-
Color Option: Black/Red
-
Size: 3.2cm x 2.9cm x 6.3cm (1.26 in x 1.14 in x 2.48 in)
-
Weight: 17g

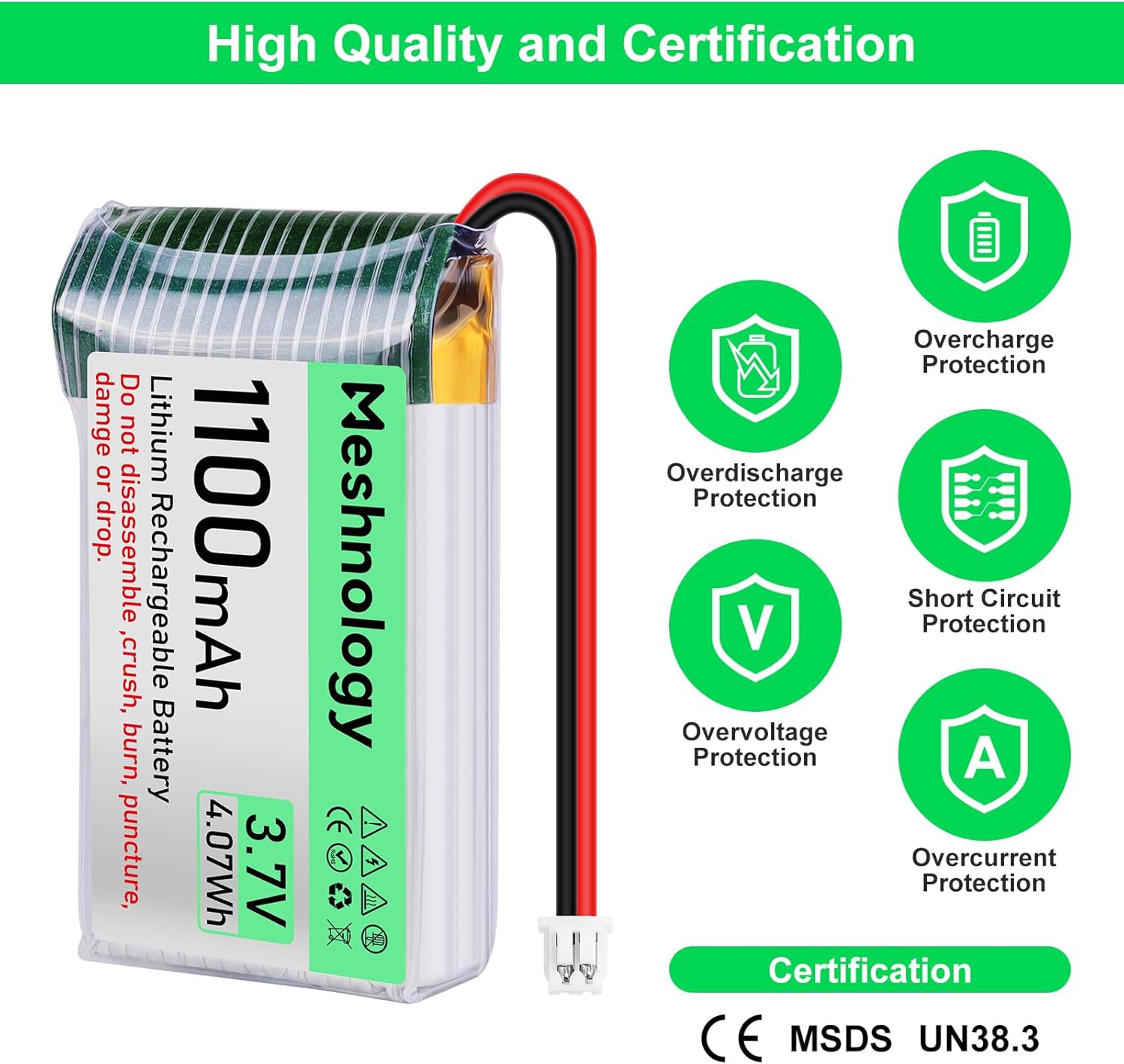

Battry For N30
Order: Pruchase Link
Dimensions
| Parameter | Data |
|---|---|
| Capacity | 1100mAh |
| Model | 102540 |
| Voltage | 3.7V |
| Cell Configuration | 1S |
| Discharge Rate | 3C |
| Connector | Micro JST 1.25 |
- Protection: Dual Protection Circuit Board (PCB) Included
- If you have purchased our battery and need the certification documents, please contact us at: support@meshnology.com. We will send them to you.
Antenna
In this standard N30 kit, there are 2 different antennas:
- Stick antenna * 1
- Soft whip antenna * 1
Frequency: 915 MHz
What's the LoRa frequency band in my Country/Region?
Installation Instructions

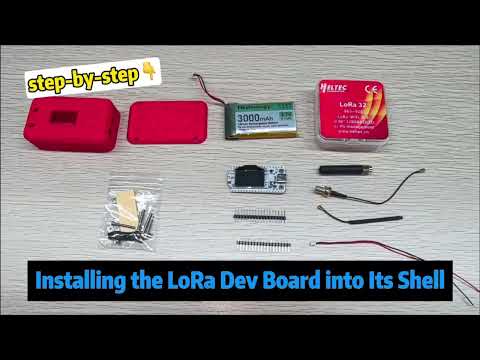

Video For Assembling N30
Video Cradit: Meshnology
Update:2025/05/17

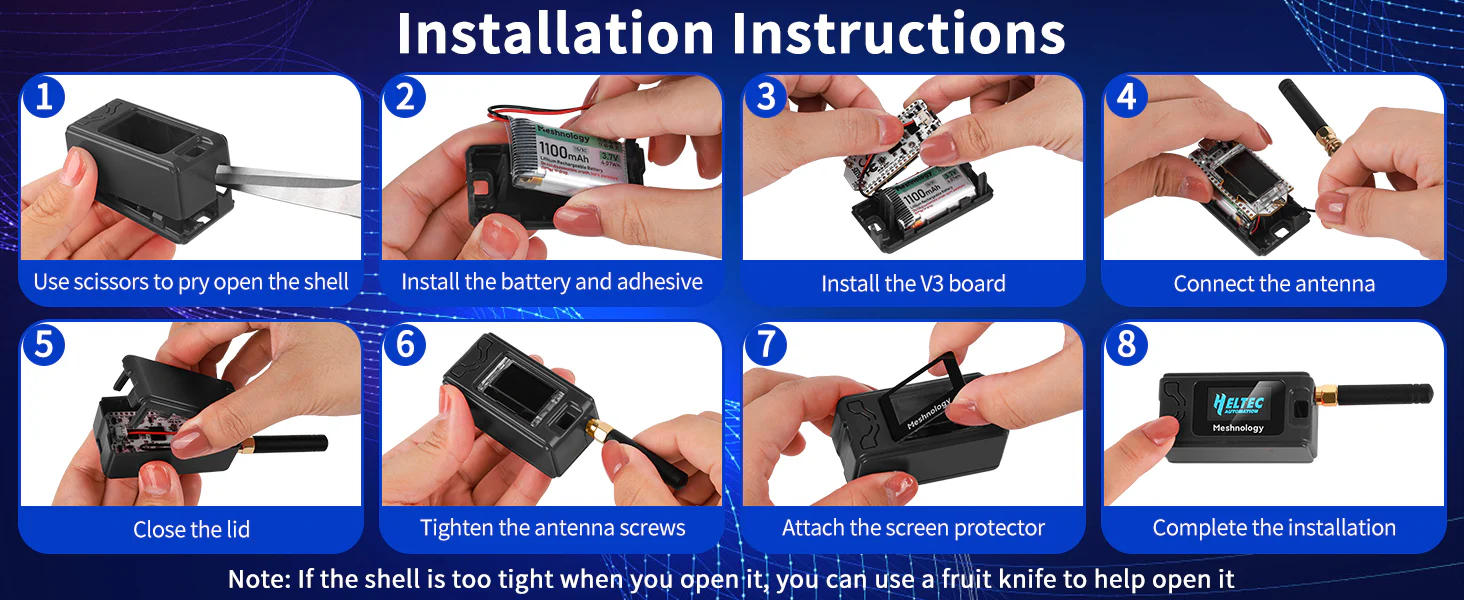

Picture Guide For Assembling N30
